CBSE Class 10 Magnetic Effects of Electric Current: Important Concepts

The Magnetic Effects of Electric Current is an important chapter in Class 10 Science, covering the fundamental principles of electromagnetism. Understanding these concepts helps students grasp real-world applications, such as electric motors, generators, and household circuits. Below are the important topics covered in this chapter:

Magnetic Field and Field Lines

• A magnetic field is the region around a magnet where its influence can be felt.
• Magnetic field lines represent the direction and strength of the magnetic field.
• Properties of magnetic field lines:

  • They emerge from the north pole and enter the south pole of a magnet.
  • They never intersect.
  • The closer the field lines, the stronger the magnetic field.

 Magnetic Field Due to a Current-Carrying Conductor

• A current-carrying conductor generates a magnetic field around it.
• Straight conductor: The field lines form concentric circles around the wire.
• Circular loop: The field is stronger at the centre, forming concentric circles.
• Right-hand thumb rule: Determines the direction of the magnetic field around a conductor.

Magnetic Field Due to a Solenoid

• A solenoid is a coil of wire that produces a magnetic field similar to a bar magnet when current flows through it.
• Used in making electromagnets, electric bells, and relays.

Electromagnet and Its Applications

• An electromagnet is a temporary magnet created by passing an electric current through a coil wound around a soft iron core.
• Used in electric motors, generators, loudspeakers, and MRI machines.

Force on a Current-Carrying Conductor in a Magnetic Field (Motor Effect)

• When a conductor carrying current is placed in a magnetic field, it experiences a force.
• Fleming’s Left-Hand Rule: Determines the direction of force.
• This principle is used in electric motors.

Electromagnetic Induction (Generator Effect)

• The process of generating current in a conductor by changing the magnetic field.
• Fleming’s Right-Hand Rule: Determines the direction of induced current.
• Used in electric generators and transformers.

Domestic Electric Circuits

• Components: Live wire, neutral wire, earth wire, fuse, and circuit breaker.
• Safety measures: Proper insulation, earthing, and correct wiring.

Exam Weightage and Study Resources

• This chapter carries 6 marks in the final CBSE exam.
• Understanding these concepts thoroughly can improve problem-solving skills and boost exam performance.
• Students can refer to downloadable Class 10 Magnetic Effects of Electric Current notes and other study materials to strengthen their preparation.

CBSE Class 10 Magnetic Effects of Electric Current: Important Diagrams

Diagrams play a crucial role in understanding the Magnetic Effects of Electric Current chapter. They help visualize magnetic fields, electromagnets, and the working principles of devices like motors and generators. Below are the key diagrams students must practice for the CBSE Class 10 Science exam:

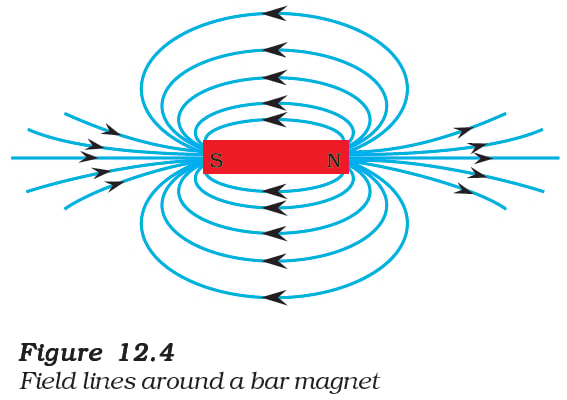

Magnetic Field Lines Around a Bar Magnet

Shows how magnetic field lines emerge from the north pole and enter the south pole, never crossing each other.

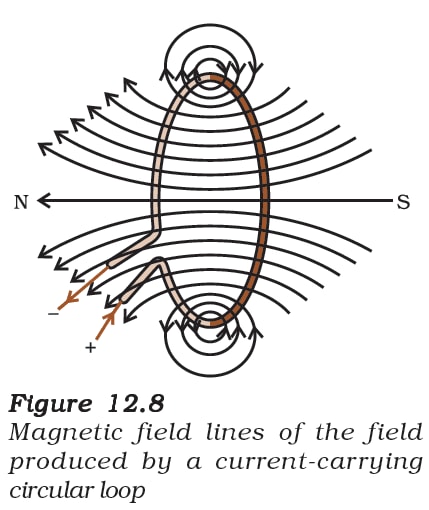

Magnetic Field Due to a Current-Carrying Circular Loop

Depicts circular magnetic field lines around a loop, stronger at the centre. The Right-Hand Thumb Rule helps determine the direction.

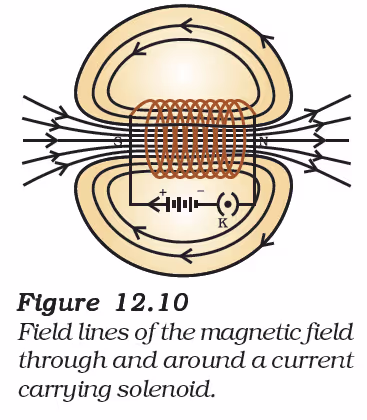

Magnetic Field Due to a Solenoid

Shows the uniform magnetic field inside a solenoid, similar to that of a bar magnet. Important for understanding electromagnets.

Force on a Current-Carrying Conductor (Fleming’s Left-Hand Rule)

Shows the three-finger rule to determine the direction of force acting on a conductor in a magnetic field, essential for electric motors.

Electromagnetic Induction (Fleming’s Right-Hand Rule)

Illustrates how current is induced in a conductor when it moves through a magnetic field, used in electric generators.

Exam Importance & Preparation Tips

• These diagrams often appear in CBSE exams for 3-4 marks, either as direct drawing questions or explanations.
• Practising these with correct labelling ensures better understanding and scoring.
• Students can refer to downloadable PDFs of Class 10 Science notes for additional practice.

CBSE Class 10 Magnetic Effects of Electric Current: Important Questions

The Magnetic Effects of Electric Current chapter is an important part of Class 10 Science, carrying 6 marks in the CBSE board exam. Below are some important questions that can help students prepare effectively:

Very Short Answer Questions (1 Mark Each)

1. What is a magnetic field?
2. Define the Right-Hand Thumb Rule.
3. What is the SI unit of magnetic field strength?
4. Why do magnetic field lines never intersect?
5. What happens to the magnetic field inside a solenoid?

Short Answer Questions (2-3 Marks Each)

1. Explain the Right-Hand Thumb Rule with a diagram.
2. How does the strength of the magnetic field around a current-carrying conductor depend on the current and distance?
3. What is an electromagnet? Mention two of its applications.
4. Differentiate between a solenoid and a bar magnet.
5. Explain Fleming’s Left-Hand Rule with a diagram.

Long Answer Questions (4-5 Marks Each)

1. Describe the pattern of magnetic field lines around a straight current-carrying conductor.
2. Explain the principle and working of an electric motor with a labelled diagram.
3. What is electromagnetic induction? State Fleming’s Right-Hand Rule.
4. How do domestic electric circuits work? Explain with a diagram.
5. What are the factors affecting the magnetic field strength in a solenoid?

HOTS (Higher Order Thinking Skills) Questions

1. Why does a freely suspended bar magnet always align in the north-south direction?
2. What would happen if the direction of the current in a solenoid is reversed?
3. A student observes that when a current flows through a circular coil, the compass needle placed near it deflects. Explain why.
4. If an electric fuse is replaced with a wire of lower resistance, what would happen?

Exam Preparation Tips

• Revise key concepts such as magnetic field lines, electromagnets, solenoids, and domestic circuits.
• Practice diagrams like the magnetic field of a bar magnet, solenoid, and electric motor.
• Solve previous years’ CBSE board papers for a better understanding.
• Use downloadable Class 10 Science notes and question banks for revision.

Common mistakes students make in Magnetic Effects of Electric Current

Many students lose marks in the Magnetic Effects of Electric Current chapter due to small errors in concepts, diagrams, and explanations. Here are the most common mistakes and how to avoid them:

Misunderstanding Magnetic Field Lines

Mistake: Thinking magnetic field lines actually exist as physical entities.

Correction: They are imaginary lines used to represent the direction and strength of the magnetic field.

Mistake: Drawing magnetic field lines incorrectly (e.g., intersecting lines).

Correction: Magnetic field lines never cross each other.

Incorrect Application of Right-Hand and Left-Hand Rules

Mistake: Confusing Fleming’s Left-Hand Rule (used for motors) with Fleming’s Right-Hand Rule (used for generators).

Correction:

• Left-Hand Rule → Motor Effect (force on a conductor).
• Right-Hand Rule → Electromagnetic Induction (induced current).

Mistake: Using the wrong hand while applying the rules.

Correction: Always use the correct hand and follow the proper finger directions.

Errors in Drawing and Labelling Diagrams

Mistake: Incomplete or incorrectly labelled diagrams (e.g., missing poles in a magnet or incorrect current direction in a solenoid).

Correction: Practice neat and correctly labelled diagrams, especially for:

• Magnetic field lines around a bar magnet
• Magnetic field due to a current-carrying conductor
• Electric motor and generator

Confusion Between Solenoids and Electromagnets

Mistake: Assuming a solenoid is an electromagnet by default.

Correction: A solenoid becomes an electromagnet only when it has a soft iron core inside it.

Incorrect Explanation of Electromagnetic Induction

Mistake: Writing that a "magnetic field produces current" without explaining the change in magnetic field.

Correction: A current is induced only when there is a change in the magnetic field.

Errors in Domestic Electric Circuits

Mistake: Misplacing the live, neutral, and earth wires in circuit diagrams.

Correction:

• Live wire (red/brown) carries current.
• Neutral wire (black/blue) completes the circuit.
• The earth wire (green/yellow) is for safety.

Mistake: Thinking a fuse prevents shocks.

Correction: A fuse prevents excessive current, not electric shocks.
